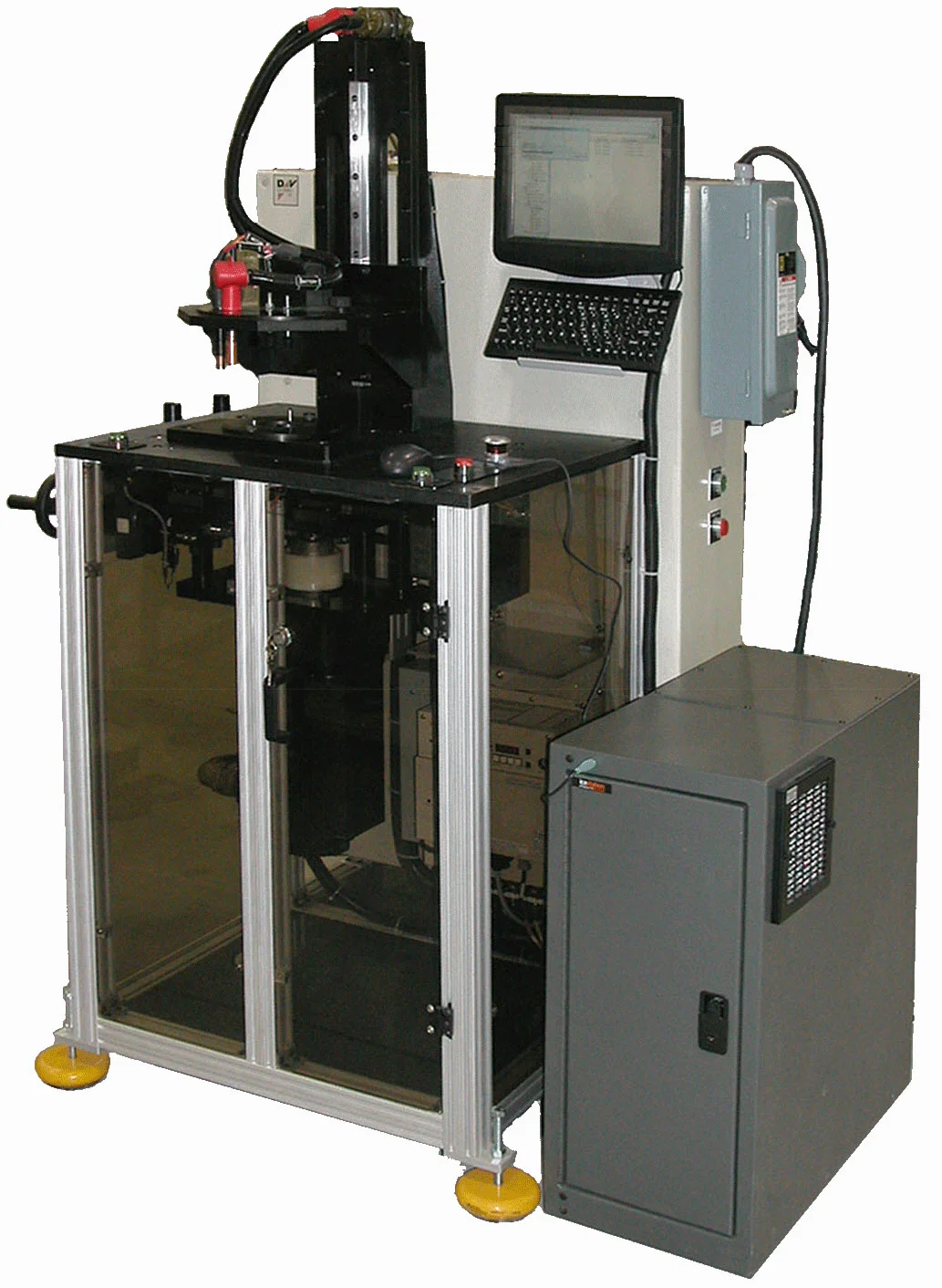

ST-12 Starter Tester

The ST-12 is designed to provide remanufacturers and OEM manufacturers with fast accurate and detailed test of the starter motors performance under load.

Key Benefits

• Remanufacturing processes are continually monitored to insure that our units meet or exceed OEM specifications.
• 100% testing of finished units
• Customer assurance that all units a functional before installation.

Capabilities of starter tester

• Contact voltage drop 0 - 2.5 Volts

• Starter efficiency 0 - 100%

• Starter output power up to 3.0 - 4.0 KW

• Starter input power 0 - 20 kW

• Starter current 0 - 1500 Amps

• Starter voltage 0 - 40 Volts

• Starter speed 0 - 10,000 RPM

• Starter torque 0 - 50 Nm

• Solenoid current 0 - 150 Amps

Reference

See D & V Electronics for complete details

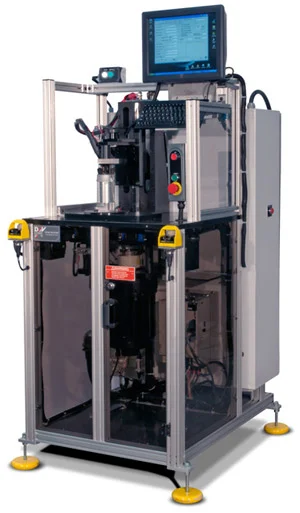

ST-16 Starter Tester

The ST-16 is designed to provide remanufacturers and OEM manufacturers with fast accurate and detailed test of the starters. Designed for precise testing for high volume applications at the touch of a button. Solenoid timing is measured on the unit which allows the machine to detect problems related to out of specification components or faulty assembling. During the test, the ST-16 recognizes automatically the starter rotation direction and applies a programmable load. The mechanical energy produced from the starter is returned back to the power supply to reduce power consumption. The performance curve is scanned in at a set of programmable points. After the load test the machine simulates engine start up and measures the drive dis-ingage function.

Features

• Contact voltage drop 0 - 2.5 Volts

• Starter efficiency 0 - 100%

• Starter output power up to 3.0 - 4.0 KW

• Starter input power 0 - 20 kW

• Starter current 0 - 1500 Amps

• Starter voltage 0 - 40 Volts

• Starter speed 0 - 10,000 RPM

• Starter torque 0 - 50 Nm

• Solenoid current 0 - 150 Amps

Reference

See D & V Electronics for complete details
